mcp-server-spreadsheet

MCP Server for Google Spreadsheets

A Model Context Protocol (MCP) server implementation that integrates with Google Spreadsheets, allowing AI assistants to retrieve and modify spreadsheet data. This server enables Claude to interact with your Google Sheets data directly.

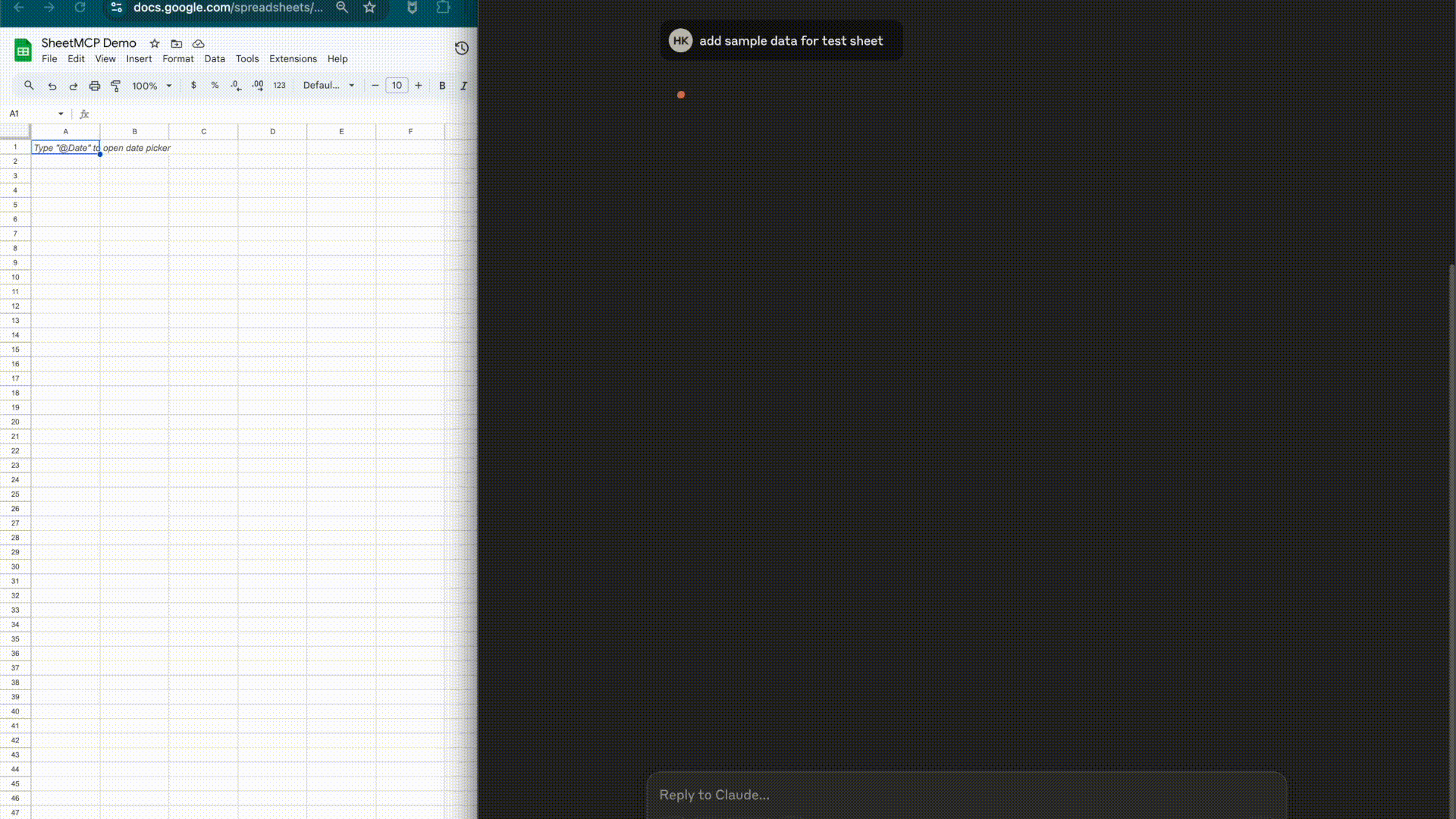

Demo

Features

This server provides the following tools for working with Google Spreadsheets:

• get_sheets: Retrieve all sheet information from a Google Spreadsheet, including names, dimensions, and IDs
• get_sheet_values: Retrieve values from a specific sheet with optional range specification
• update_cells: Update values in a specific range of cells within a sheet
• batch_update_cells: Update multiple ranges across different sheets in a single operation
• add_sheet: Add a new sheet to an existing spreadsheet with customizable dimensions

Prerequisites

• Node.js (v18 or higher)
• Google Cloud project with the Google Sheets API enabled
• Google Cloud authentication credentials
• Claude Desktop (for integration with Claude)

Installation

1. Clone this repository:

   git clone https://github.com/yourusername/mcp-server-spreadsheet.git
   cd mcp-server-spreadsheet


2. Install dependencies:

   pnpm install


Authentication Setup

This server uses Google Cloud's Application Default Credentials for authentication to access Google Sheets.

1. Install the Google Cloud CLI if you haven't already
2. Log in and authorize access to Google Sheets:

   gcloud auth application-default login --scopes=openid,https://www.googleapis.com/auth/userinfo.email,https://www.googleapis.com/auth/cloud-platform,https://www.googleapis.com/auth/spreadsheets


[!Tip]

• Ensure your Google Project's Sheet API is enabled.
• Don't forget --scopes option for gcloud auth application-default login

Building and Running

1. Build the project:

   pnpm build


2. Run the server:

   pnpm start


The server will start and listen for MCP commands via standard input/output.

Integration with Claude for Desktop

To use this server with Claude for Desktop:

1. Make sure Claude for Desktop is installed and running

2. Add the server to Claude for Desktop's configuration file (claude_desktop_config.json):

   {
     "mcpServers": {
       "spreadsheet": {
         "command": "node",
         "args": ["/absolute/path/to/mcp-server-spreadsheet/build/index.js"],
         "env": {
           "GOOGLE_PROJECT_ID": "your-google-project-id",
           "GOOGLE_APPLICATION_CREDENTIALS": "/absolute/path/to/your/credentials.json"
         }
       }
     }
   }


3. Restart Claude for Desktop to load the server

Usage Examples

Once integrated with Claude, you can use natural language to work with your spreadsheets. Here are some example prompts:

Retrieving Spreadsheet Information

Could you tell me what sheets are in this spreadsheet? https://docs.google.com/spreadsheets/d/YOUR_SPREADSHEET_ID/edit

Getting Data from a Sheet

Please show me the data from the "Sales" sheet in this spreadsheet: https://docs.google.com/spreadsheets/d/YOUR_SPREADSHEET_ID/edit

Updating Data

Update cells A1:B2 in the "Q1 Budget" sheet with these values:
- Row 1: 1000, 2000
- Row 2: 3000, 4000
The spreadsheet URL is: https://docs.google.com/spreadsheets/d/YOUR_SPREADSHEET_ID/edit

Adding a New Sheet

Please add a new sheet called "Q2 Planning" to this spreadsheet: https://docs.google.com/spreadsheets/d/YOUR_SPREADSHEET_ID/edit

Available Tools

get_sheets

Retrieves information about all sheets in a spreadsheet.

Parameters:

• spreadsheetUrl: URL or ID of the Google Spreadsheet

get_sheet_values

Retrieves values from a specific sheet in a spreadsheet.

Parameters:

• spreadsheetUrl: URL or ID of the Google Spreadsheet
• sheetName: Name of the sheet to retrieve data from
• range (optional): Cell range in A1 notation (e.g., "A1:D5")

update_cells

Updates values in a specific range of cells.

Parameters:

• spreadsheetUrl: URL or ID of the Google Spreadsheet
• sheetName: Name of the sheet to update
• range: Cell range in A1 notation (e.g., "A1:B2")
• values: 2D array of values to write (each inner array represents a row)

batch_update_cells

Updates values in multiple ranges across different sheets in a single operation.

Parameters:

• spreadsheetUrl: URL or ID of the Google Spreadsheet
• updates: Array of update operations, each with:
  • sheetName: Name of the sheet to update
  • range: Cell range in A1 notation
  • values: 2D array of values to write

add_sheet

Adds a new sheet to an existing spreadsheet.

Parameters:

• spreadsheetUrl: URL or ID of the Google Spreadsheet
• sheetTitle: Title for the new sheet
• rowCount (optional): Number of rows (default: 1000)
• columnCount (optional): Number of columns (default: 26)

Development

Project Structure

• src/index.ts: Main entry point
• src/tools/: Individual MCP tool implementations
• src/utils/: Utility functions and services
• src/types/: TypeScript type definitions

Running Tests

pnpm test

Environment Variables

You can create a .env file in the project root with the following variables:

# Optional: Override Google API credentials path
GOOGLE_APPLICATION_CREDENTIALS=/path/to/credentials.json

# Optional: Debug mode
DEBUG=true

Troubleshooting

• Authentication Errors: Make sure you've set up the correct credentials and the Google Sheets API is enabled in your Google Cloud project.
• Permission Errors: Ensure your Google account or service account has access to the spreadsheets you're trying to access.
• Server Connectivity: Check that Claude for Desktop is correctly configured to start the MCP server.

License

MIT

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.
