shotgrid-mcp-server

shotgrid-mcp-server

13
developer_toolscommunication

ShotGrid MCP Server is a robust implementation of the Model Context Protocol for ShotGrid, offering high-performance CRUD operations, thumbnail management, and direct API access. It includes comprehensive documentation and tools to facilitate seamless integration and development support.

MseeP.ai Security Assessment Badge

🎯 ShotGrid MCP Server

English |

A high-performance ShotGrid Model Context Protocol (MCP) server implementation based on fastmcp

Python Version PyPI version codecov Downloads Downloads Downloads

🎬 Demo

Here's a simple example of querying entities using the ShotGrid MCP server:

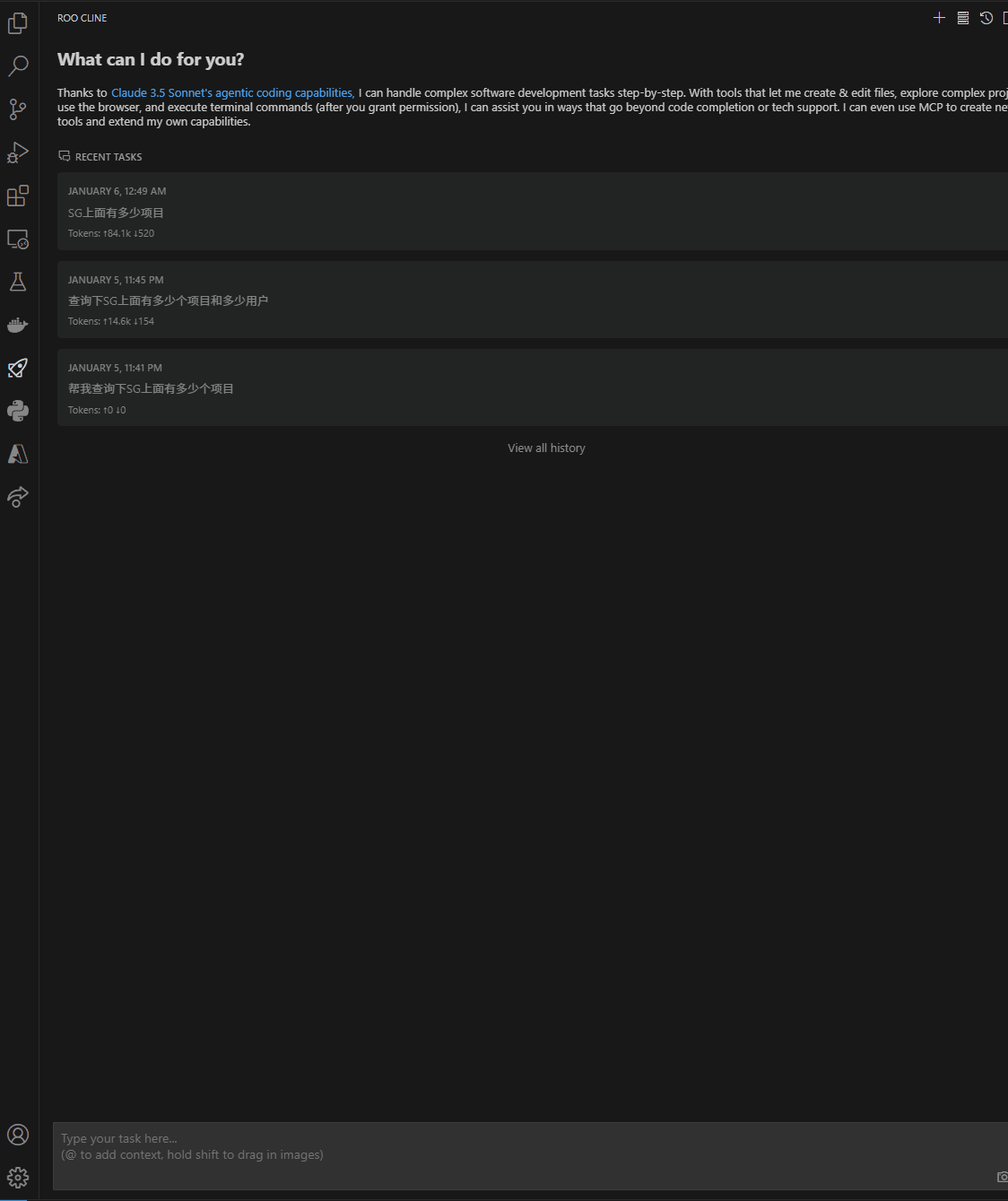

ShotGrid MCP Server Demo

✨ Features

  • 🚀 High-performance implementation based on fastmcp
  • 🛠 Complete CRUD operation toolset
  • 🖼 Dedicated thumbnail download/upload tools
  • 🔄 Efficient connection pool management
  • 🔌 Direct ShotGrid API access through MCP tools
  • 📝 Enhanced note and playlist management
  • ✅ Comprehensive test coverage with pytest
  • 📦 Dependency management with UV
  • 🌐 Cross-platform support (Windows, macOS, Linux)

🚀 Quick Start

Installation

Install using UV:

uv pip install shotgrid-mcp-server

Quick Usage

Once installed, you can start the server directly with:

uvx --python 3.10 shotgrid-mcp-server

Important: The ShotGrid MCP server requires Python 3.10. When using uvx, you must specify the Python version with --python 3.10 to ensure compatibility, as uvx may default to using the latest Python version (e.g., 3.13) which is not compatible with this package.

Alternatively, you can set the Python version using an environment variable:

# Windows
set UV_PYTHON=3.10
uvx shotgrid-mcp-server

# Linux/macOS
export UV_PYTHON=3.10
uvx shotgrid-mcp-server

Make sure you have set the required environment variables (SHOTGRID_URL, SHOTGRID_SCRIPT_NAME, SHOTGRID_SCRIPT_KEY) before starting the server.

Development Setup

  1. Clone the repository:
git clone https://github.com/loonghao/shotgrid-mcp-server.git
cd shotgrid-mcp-server
  1. Install development dependencies:
pip install -r requirements-dev.txt
  1. Development Commands All development commands are managed through nox. Check noxfile.py for available commands:
# Run tests
nox -s tests

# Run linting
nox -s lint

# Run type checking
nox -s type_check

# And more...
  1. Development Server with Hot Reloading

Note: This requires Node.js to be installed on your system.

For a better development experience with hot reloading (server automatically restarts when code changes):

uv run fastmcp dev src/shotgrid_mcp_server/server.py:app

This will start the server in development mode, and any changes to the code will automatically reload the server.

⚙️ Configuration

Environment Variables

The following environment variables are required:

SHOTGRID_URL=your_shotgrid_url
SHOTGRID_SCRIPT_NAME=your_script_name
SHOTGRID_SCRIPT_KEY=your_script_key

You can set them directly in your shell:

# PowerShell
$env:SHOTGRID_URL='your_shotgrid_url'
$env:SHOTGRID_SCRIPT_NAME='your_script_name'
$env:SHOTGRID_SCRIPT_KEY='your_script_key'

# Bash
export SHOTGRID_URL='your_shotgrid_url'
export SHOTGRID_SCRIPT_NAME='your_script_name'
export SHOTGRID_SCRIPT_KEY='your_script_key'

Or create a .env file in your project directory.

🔧 Available Tools

Core Tools

  • create_entity: Create ShotGrid entities
  • find_one_entity: Find a single entity
  • search_entities: Search for entities with filters
  • update_entity: Update entity data
  • delete_entity: Delete entities

Media Tools

  • download_thumbnail: Download entity thumbnails
  • upload_thumbnail: Upload entity thumbnails

Note & Playlist Tools

  • shotgrid.note.create: Create notes
  • shotgrid.note.read: Read note information
  • shotgrid.note.update: Update note content
  • create_playlist: Create playlists
  • find_playlists: Find playlists with filters

Direct API Access

  • sg.find: Direct access to ShotGrid API find method
  • sg.create: Direct access to ShotGrid API create method
  • sg.update: Direct access to ShotGrid API update method
  • sg.batch: Direct access to ShotGrid API batch method
  • And many more...

🤖 AI Prompt Examples

Here are some examples of how to use ShotGrid MCP with AI assistants like Claude:

Basic Queries

Help me find all ShotGrid entities updated in the last 3 months.

Show me all shots that were updated last week for the "Awesome Project".

Creating and Managing Playlists

Create a playlist called "Daily Review - April 21" with all shots updated yesterday by the lighting department.

Find all playlists created this week.

Notes and Feedback

Add a note to SHOT_010 saying "Please adjust the lighting in the background to be more dramatic".

Advanced Workflows

Help me summarize the time logs for the "Animation" department this month and generate a chart using echarts to visualize the hours spent.

Find all shots that were updated yesterday by the lighting team, create a playlist called "Lighting Review - April 21", and notify the director via a note.

📚 Documentation

For detailed documentation, please refer to the documentation files in the /docs directory.

You can also explore the available tools and their parameters directly in Claude Desktop after installing the server.

🤝 Contributing

Contributions are welcome! Please ensure:

  1. Follow Google Python Style Guide
  2. Write tests using pytest
  3. Update documentation
  4. Use absolute imports
  5. Follow the project's coding standards

📝 Version History

See for detailed version history.

📄 License

MIT License - see the file for details.

🔌 MCP Client Configuration

To use the ShotGrid MCP server in your MCP client, add the appropriate configuration to your client's settings.

Claude Desktop / Anthropic Claude

{
  "mcpServers": {
    "shotgrid-server": {
      "command": "uvx",
      "args": [
        "--python", "3.10",
        "shotgrid-mcp-server"
      ],
      "env": {
        "SHOTGRID_SCRIPT_NAME": "XXX",
        "SHOTGRID_SCRIPT_KEY": "XX",
        "SHOTGRID_URL": "XXXX"
      },
      "disabled": false,
      "alwaysAllow": [
        "search_entities",
        "create_entity",
        "batch_create",
        "find_entity",
        "get_entity_types",
        "update_entity",
        "download_thumbnail",
        "batch_update",
        "delete_entity",
        "batch_delete"
      ]
    }
  }
}

Cursor

// .cursor/mcp.json
{
  "mcpServers": {
    "shotgrid-server": {
      "command": "uvx",
      "args": [
        "--python", "3.10",
        "shotgrid-mcp-server"
      ],
      "env": {
        "SHOTGRID_SCRIPT_NAME": "XXX",
        "SHOTGRID_SCRIPT_KEY": "XX",
        "SHOTGRID_URL": "XXXX"
      }
    }
  }
}

Windsurf (Codeium)

// MCP configuration
{
  "mcpServers": {
    "shotgrid-server": {
      "command": "uvx",
      "args": [
        "--python", "3.10",
        "shotgrid-mcp-server"
      ],
      "env": {
        "SHOTGRID_SCRIPT_NAME": "XXX",
        "SHOTGRID_SCRIPT_KEY": "XX",
        "SHOTGRID_URL": "XXXX"
      }
    }
  }
}

Cline (VS Code Extension)

// MCP configuration
{
  "mcpServers": {
    "shotgrid-server": {
      "command": "uvx",
      "args": [
        "--python", "3.10",
        "shotgrid-mcp-server"
      ],
      "env": {
        "SHOTGRID_SCRIPT_NAME": "XXX",
        "SHOTGRID_SCRIPT_KEY": "XX",
        "SHOTGRID_URL": "XXXX"
      }
    }
  }
}

Visual Studio Code

// .vscode/mcp.json
{
  "inputs": [
    {
      "type": "promptString",
      "id": "shotgrid-script-name",
      "description": "ShotGrid Script Name",
      "password": false
    },
    {
      "type": "promptString",
      "id": "shotgrid-script-key",
      "description": "ShotGrid Script Key",
      "password": true
    },
    {
      "type": "promptString",
      "id": "shotgrid-url",
      "description": "ShotGrid URL",
      "password": false
    }
  ],
  "servers": {
    "shotgrid-server": {
      "type": "stdio",
      "command": "uvx",
      "args": ["--python", "3.10", "shotgrid-mcp-server"],
      "env": {
        "SHOTGRID_SCRIPT_NAME": "${input:shotgrid-script-name}",
        "SHOTGRID_SCRIPT_KEY": "${input:shotgrid-script-key}",
        "SHOTGRID_URL": "${input:shotgrid-url}"
      }
    }
  }
}

VS Code User Settings

// settings.json
{
  "mcp": {
    "shotgrid-server": {
      "type": "stdio",
      "command": "uvx",
      "args": ["--python", "3.10", "shotgrid-mcp-server"],
      "env": {
        "SHOTGRID_SCRIPT_NAME": "XXX",
        "SHOTGRID_SCRIPT_KEY": "XX",
        "SHOTGRID_URL": "XXXX"
      }
    }
  },
  "chat.mcp.discovery.enabled": true
}

🔑 Credentials Setup

In the configuration examples above, replace the following values with your ShotGrid credentials:

  • SHOTGRID_SCRIPT_NAME: Your ShotGrid script name
  • SHOTGRID_SCRIPT_KEY: Your ShotGrid script key
  • SHOTGRID_URL: Your ShotGrid server URL

🛡️ Tool Permissions

The alwaysAllow section lists the tools that can be executed without requiring user confirmation. These tools are carefully selected for safe operations. You can customize this list based on your security requirements.
